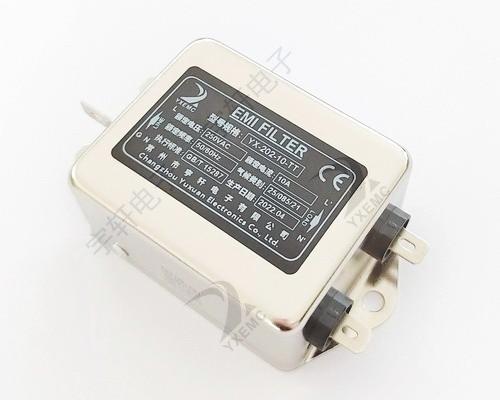

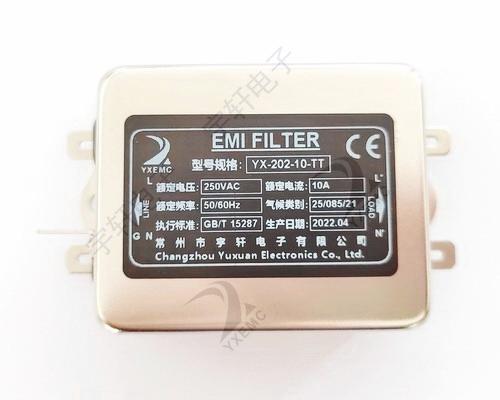

特 點 Features

● 高性能電源濾波器。High performance power filter.

● 泄漏電流小。The leakage current is small.

● 常規通用，安裝方便。General purpose, easy to install.

應 用 Application

● 大多數數字設備（尤其開關電源），可用來抑制連續或間隙性

脈沖干擾，尤其適用于低阻抗負載場合。

Most digital devices, especially switching power supplies,

can be used to suppress continuity or gap Pulse interference,

especially suitable for low impedance load.

性能指標 Characteristcs

產品型號表 Filter Table

型號 model	接線方式：輸入輸出			額定電流A Rated curren	MAX泄漏電流mA leakage current	放電電阻KΩ resistance	電路圖Fig. Circuit diagram	外形尺寸Fig. Outline Drawing
YX-212-1-	TT	WW		1	0.7	1000	1	1
YX-212-3-	TT	WW		3	0.7	470	1	1
YX-212-6-	TT	WW		6	0.7	220	1	2
YX-212-10-	TT	WW	SS	10	0.7	220	1	2/4
YX-212-16-	TT	WW	SS	16	0.7	220	1	3/4
YX-212-25-			SS	25	0.7	220	1	5
YX-212-36-			SS	36	0.7	220	1	5
YX-222-50-			SS	50	1.0	1000	2	6
YX-222-80-			SS	80	0.8	680	2	7

電原理圖Typical Circuit Diagram

Fig.1 Fig.2

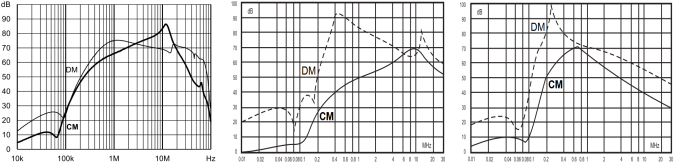

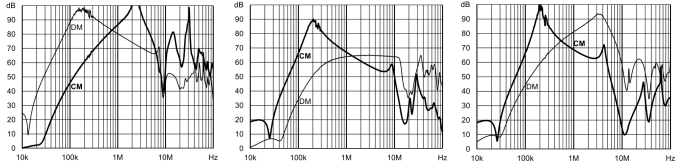

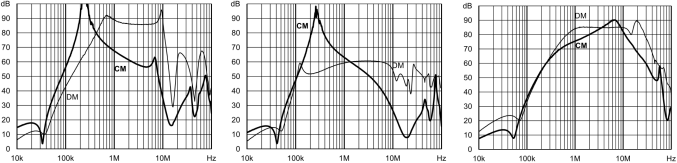

插入損耗 Insertion LOSS in dB (50Ω測量系統，IEC/CISPR No.17號出版物)

1A 3A 6A

10A 16A 25A

36A 50A 80A

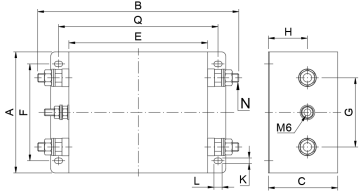

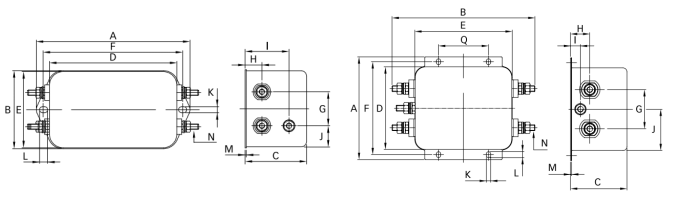

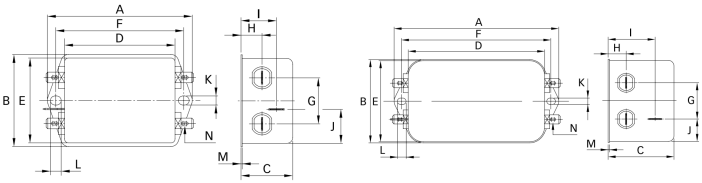

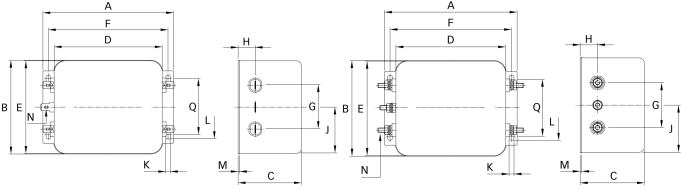

外形尺寸圖 Outline Drawing : mm

Fig.1 (1A~3A) Fig.2 (6A~10A)

Fig.3 (16A) Fig.4 (10~16A)

Fig.5 (25~36A) Fig.6 (50A)

Fig.7 (80A)
