特 點 Features

● 結構緊湊，體積小，性價比高。

Compact structure, small size, high cost performance.

● 漏電流小，底板式安裝，簡單方便。Small leakage current,

floor type installation, simple and convenient.

● 良好的共模和差模干擾衰減性能。Good common mode and

differential mode interference attenuation performance.

● 星型電路和三角形電路均可適用。

Both star circuit and triangle circuit can be used.

應 用 Application

● 工業自動化。Industrial automation.

● 醫療設備。Medical equipment.

● 抑制沿電源線傳輸的工業無線電干擾。Suppress industrial radio interference transmitted along the power line.

性能指標 Characteristcs

產品型號表 Filter Table

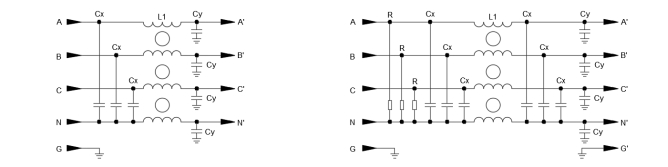

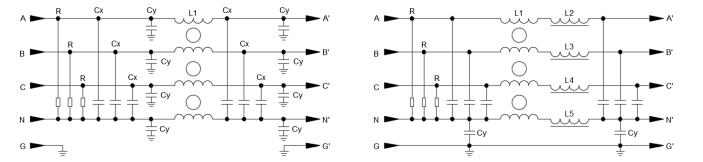

電原理圖Typical Circuit Diagram

Fig.1 Fig.2

Fig.3 Fig.4

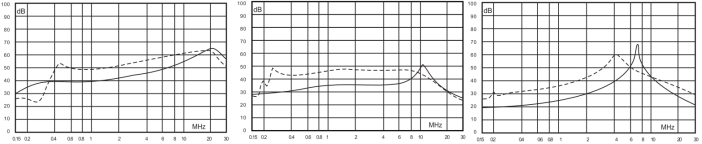

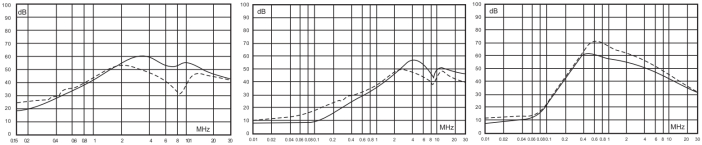

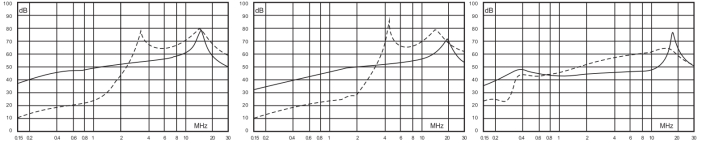

插入損耗 Insertion LOSS in dB (50Ω測量系統，IEC/CISPR No.17號出版物)

5A 10A 16A~25A

30A 50A 80A

100A 200A 300A~600A

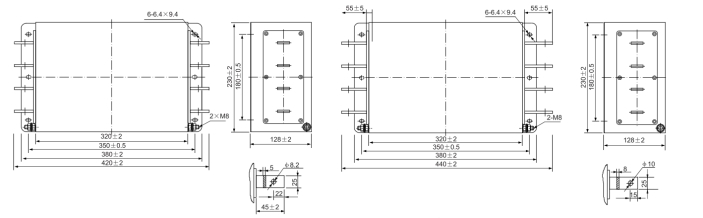

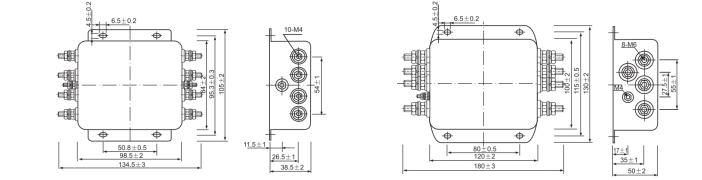

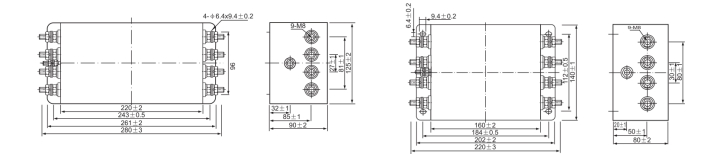

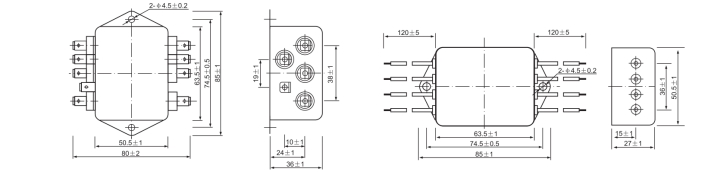

外形尺寸圖 Outline Drawing : mm

Fig.1 (5~10A) Fig.2 (5~10A)

Fig.3 (16A~30A) Fig.4 (50A)

Fig.5 (80A) Fig.6 (100A)

Fig.7 (300A) Fig.8 (600A)
